Quality Casements
Thermally broken window allowing outward opening both as casement and projecting (British-style). This solution, with a 32 mm thermal break and a thermal transmittance value Uw from 0.9 W/m²K, is certified to PAS 24 and is especially suited to the UK market.
Casement Windows
Features
Secure
Thermal
Efficient
Hardware
UK
Manufactured
5 different finishes
Bespoke
premium aluminium
configuration options
Inspiration
Handle options
Technical specifications
| Thermal transmittance |  | Uw ≥ 0.9 (W/m2K) | |
| Acoustic insulation |  | Rw up to 45 dB | |
| Air permeability |  | Class 4 | |
| Watertightness |  | Class E1200 | |
| Wind resistance |  | Class CE2400 | |
| PAS 24 security test |  | Pass |
Reference AEV test 1.44 x 1.33 m/1 sash + 1 fixed
Security test: reference 1.44 × 1.33 m/1 sash + 1 fixed

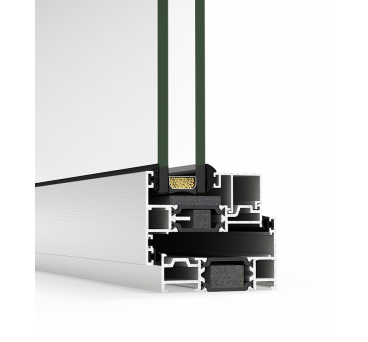

Frame 70 mm, Sash 70 mm
32 mm
Window 1.6 mm
Max. 44 mm, Min. 23 mm
Reduced sash (Casement):
Width (L) 950 mm, Height (H) 1300 mm
Reduced sash (Projecting):Width (L) 1200 mm, Height (H) 1300 mm
Heavy duty sash (Casement):Width (L) 750 mm, Height (H) 1750 mm
Heavy duty sash (Projecting):Width (L) 1800 mm, Height (H) 1800 mm
Reduced Casement: 35 kg
Reduced Projecting: 50 kg
HD Casement: 42 kg
HD Projecting: 100 kg
Consult maximum weight and dimensions depending on configuration
