Cortizo Bi-folding door
Whether it’s for a period property, a modern new build or something completely unique, AWE Aluminium bifold doors can be made to suit the project. Combining precision manufacturing, slim sightlines and smooth operation, every door is made to measure at our Swansea factory. With a wide choice of configurations, colours and finishes available, each bifold can be tailored to complement the property perfectly.
Standard Bi-Fold
Designed with thermal performance in mind, Standard Bi-fold can achieve U values as low as 1.0 W/m²K. This helps minimise heat loss and maintain a comfortable indoor temperature throughout the seasons.

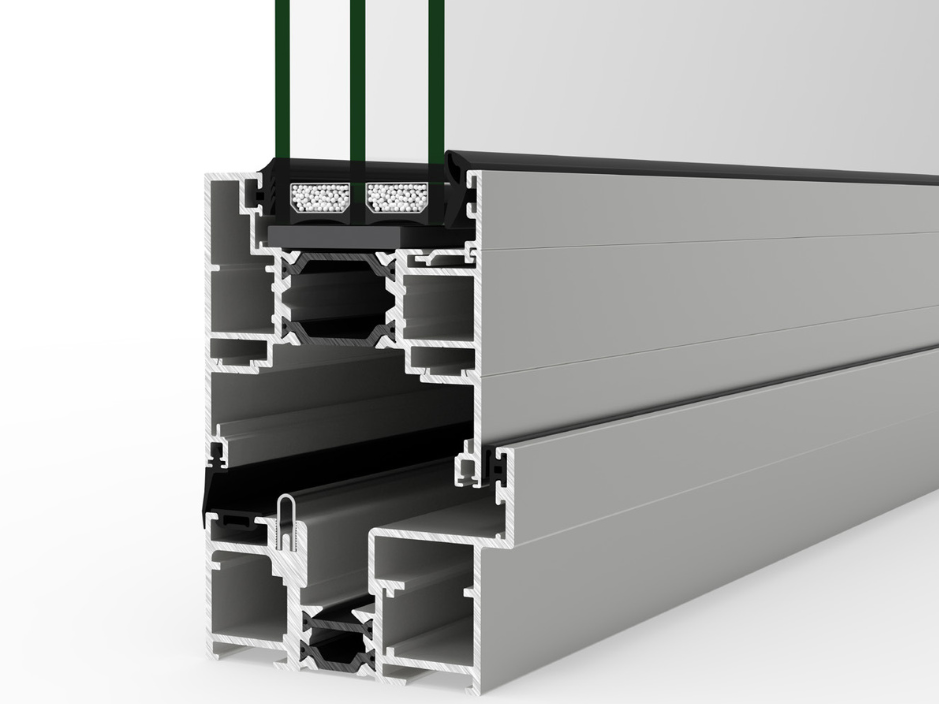

Folding door system with a 73 mm frame depth offering excellent thermal and acoustic performance, ideal for moderate climates.
Features
Secure
Thermal
Efficient
Hardware
UK
Manufactured
5 different finishes
Bespoke
premium aluminium
configuration options

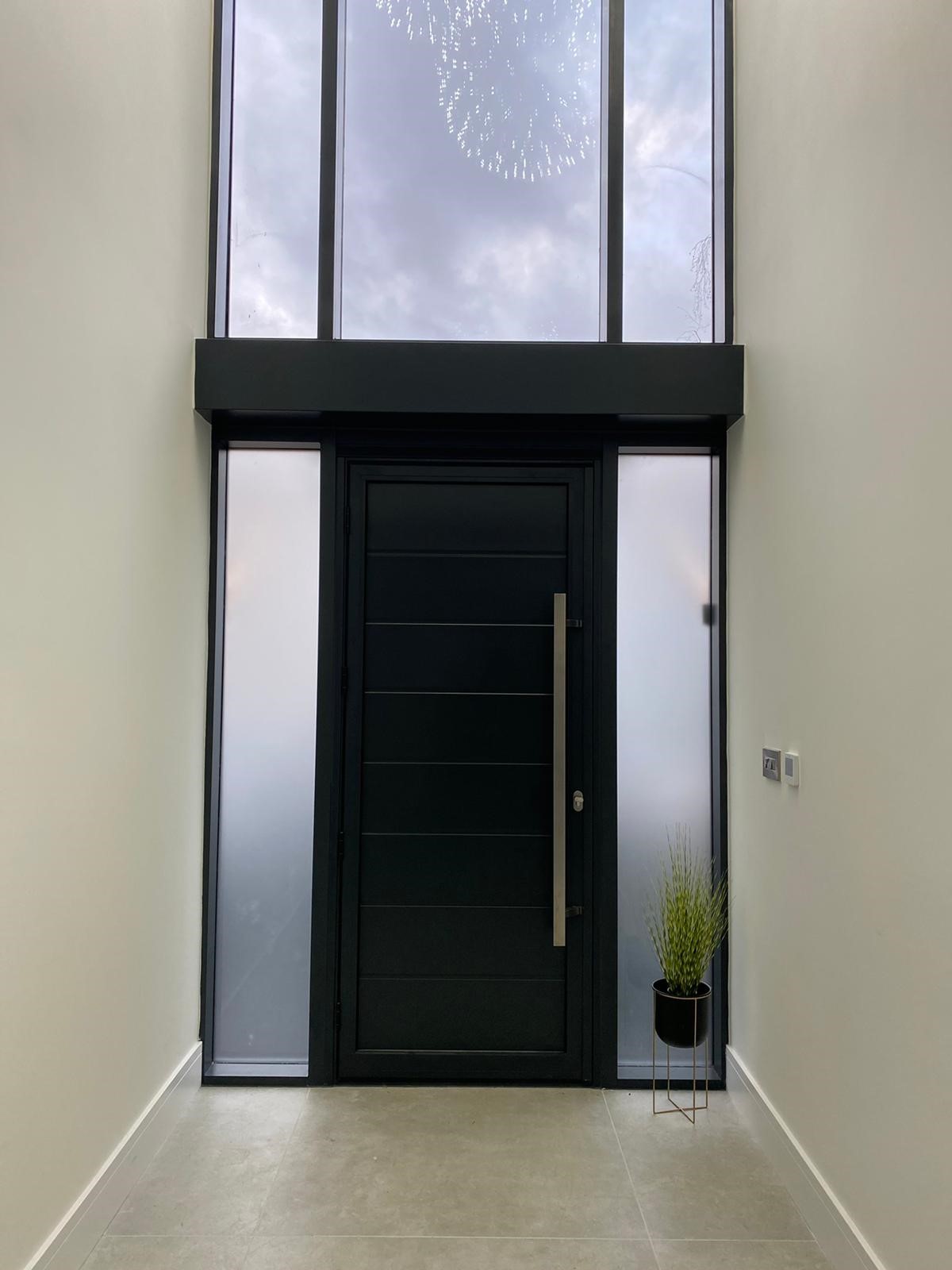

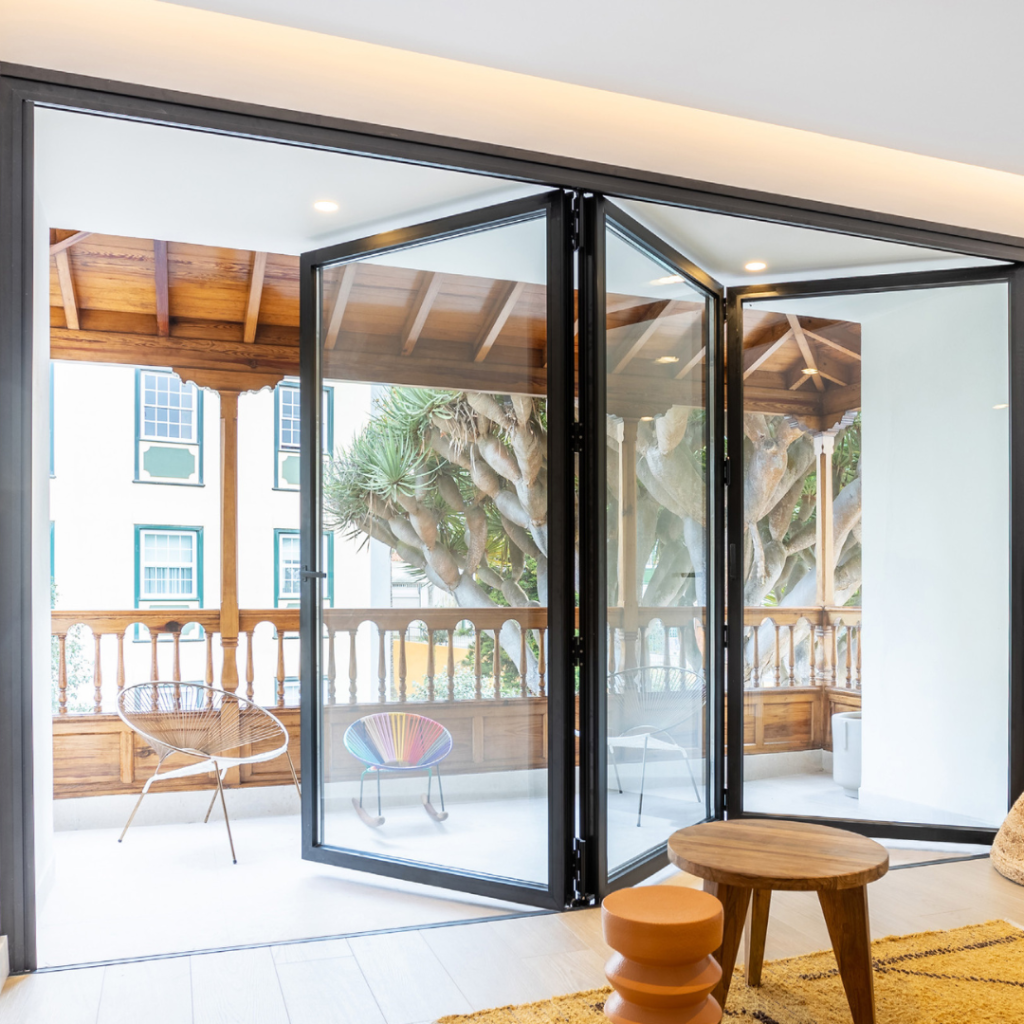

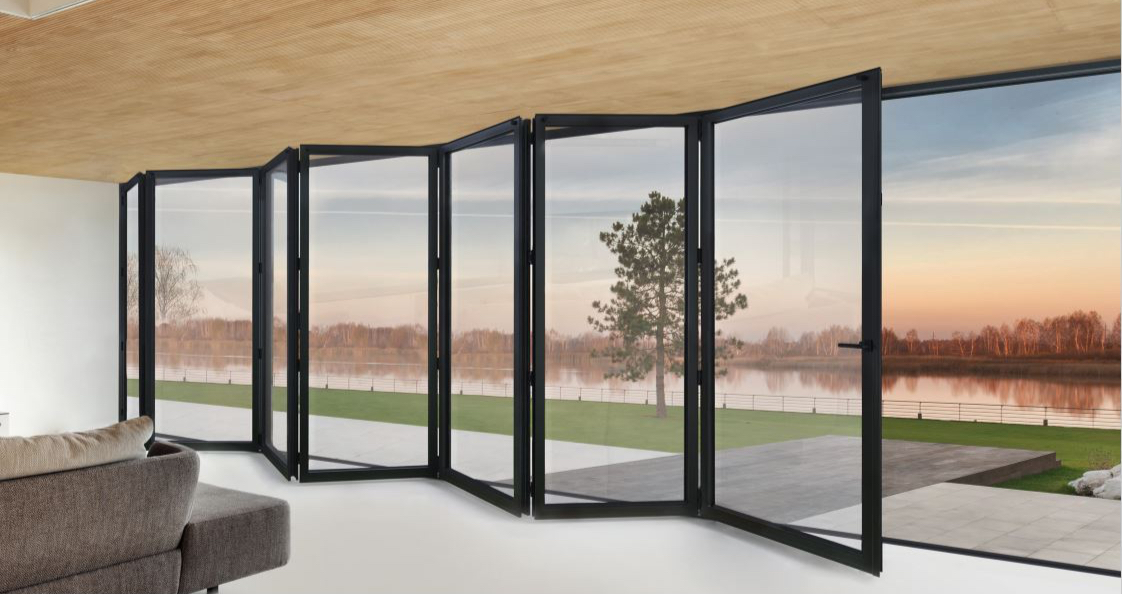

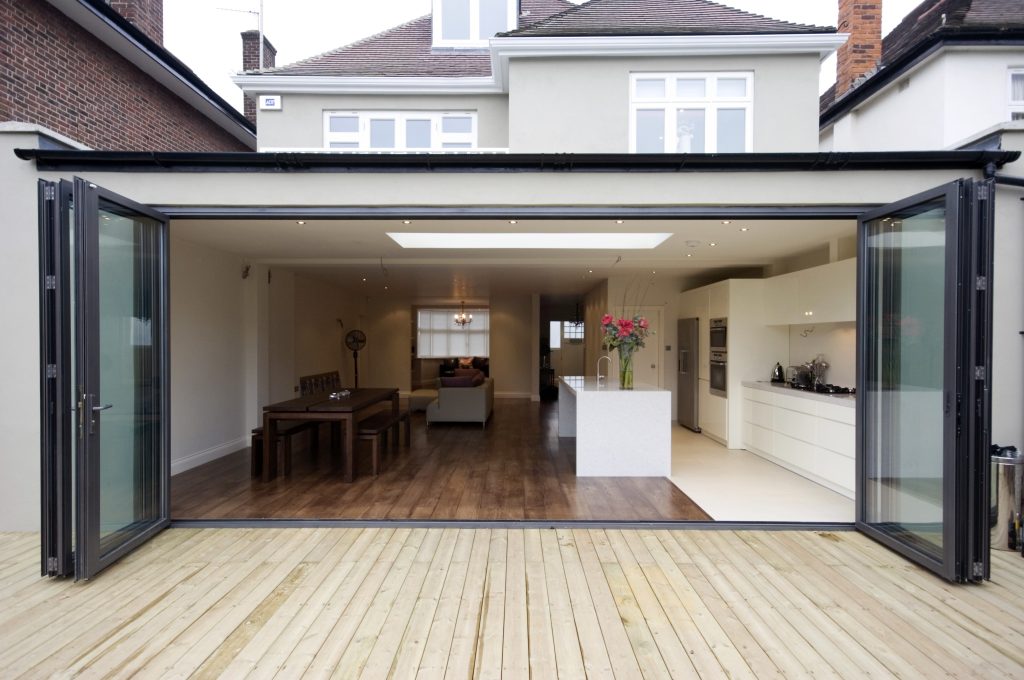

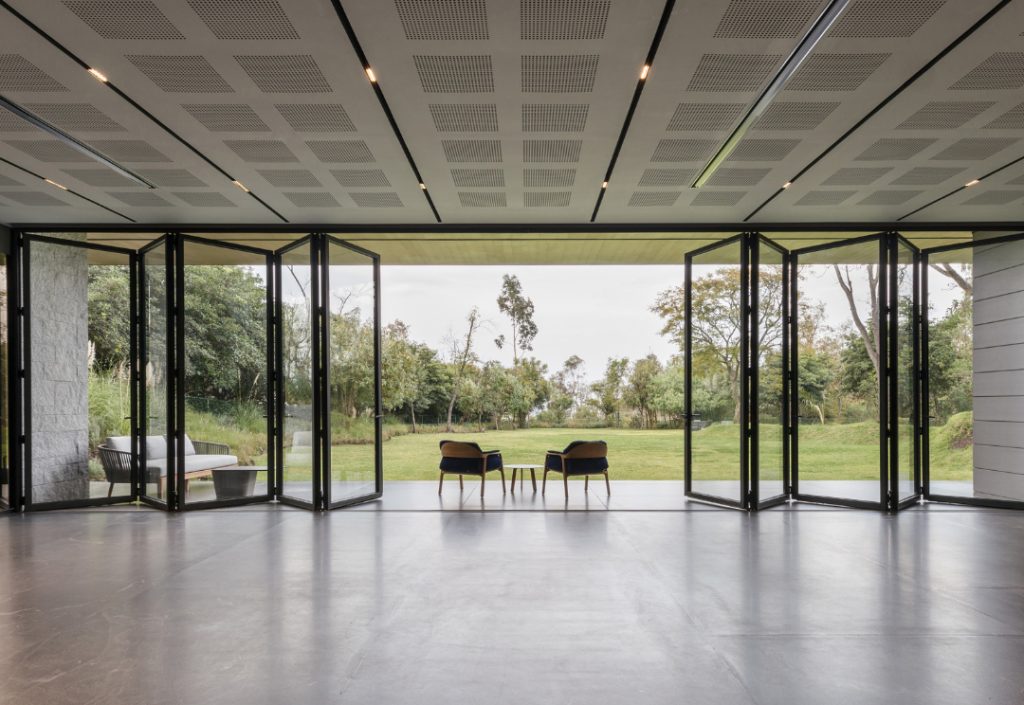

Inspiration

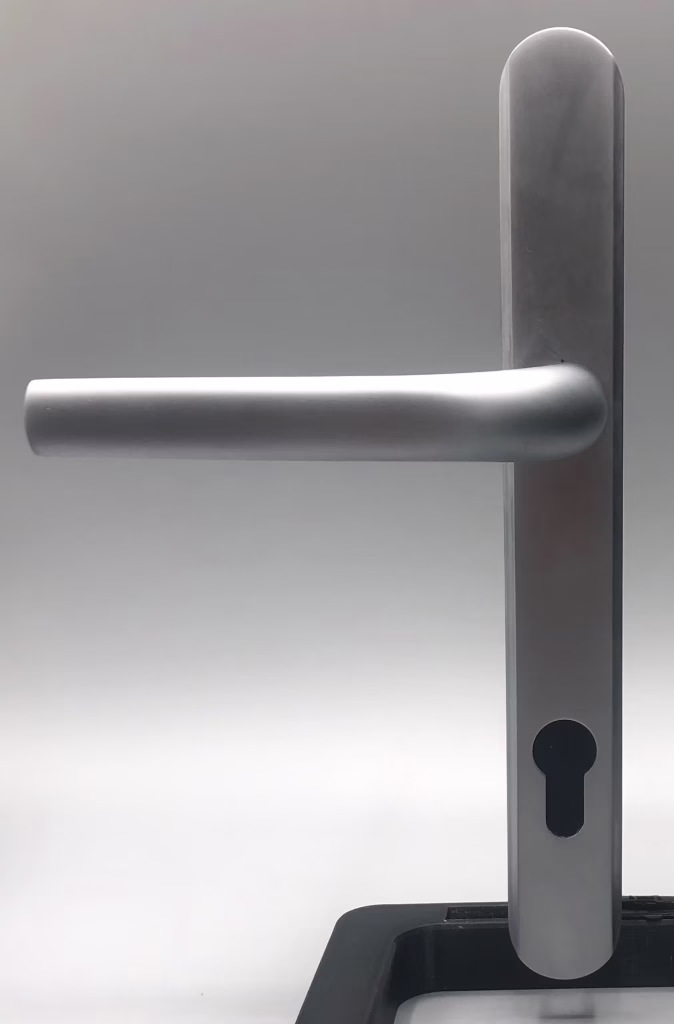

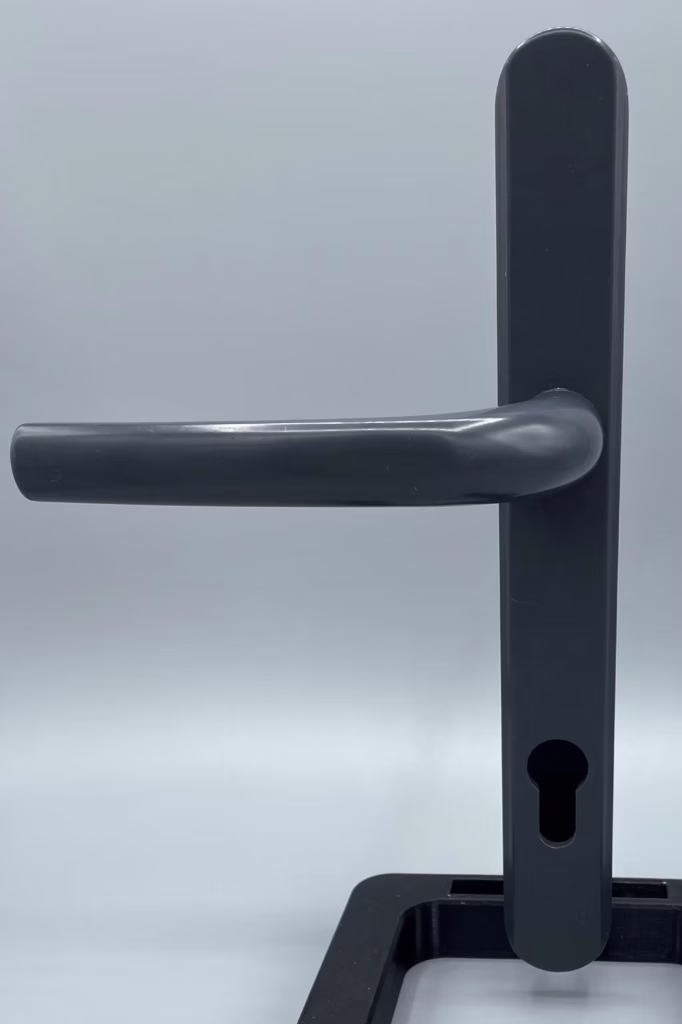

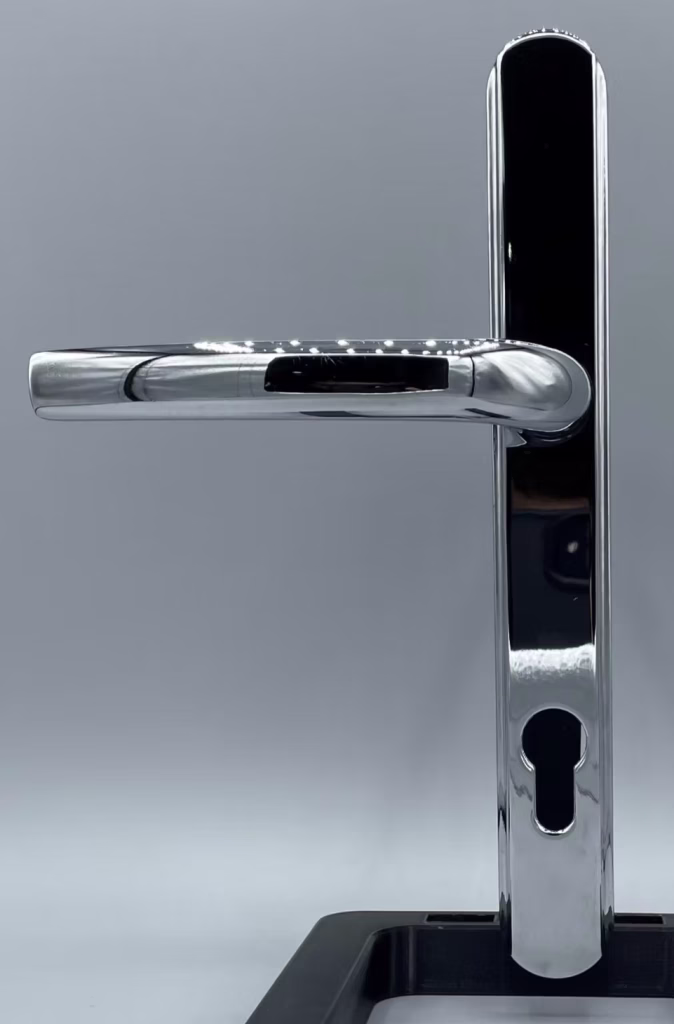

Handle options
Technical specifications
| Thermal Transmittance |  | UD * 0.97 (W/m2K) | |
| Air permeability |  | Class 4 | |
| Water tightness |  | Class 9A | |
| Wind resistance |  | Class A3 | |
| Security test |  | Approved |
Reference test AEV 2,700 x 2,530 mm / 3 sashes
Security test: Configuration 330. 2701 × 2517 mm / 3 sashes
Frame 73mm, Sash 73mm
Frame 20mm
Sash 30mm
Door 1.8 mm
Max. 45mm, Min. 25mm
Width (L) 1200 mm, Height (H) 3000 mm
120 kg
Check maximum weight and dimensions depending on typology
